Off-the-shelf 8" capacitive touch display for smart mirrors. Uses vacuum OCA optical bonding to eliminate display ghosting on two-way mirror glass, delivering cost-efficient smart home upgrades.
Case Details:
As a professional integrated touchscreen manufacturer, we focus on solving adaptation challenges between specialized optical cover lenses and touch modules for our clients. Recently, a client sent us a smart mirror glass cover panel used for smart bathrooms and beauty terminals. To address the equipment's need for high-reflectivity mirror visuals while ensuring touch sensitivity and high transparency in the central viewing zone, our technical team matched it using a standard 8-inch off-the-shelf capacitive touchscreen public mold from our inventory. Without requiring new mold development, this solution effectively resolved touch lag and image ghosting caused by multi-layer medium reflections.Project Background:
According to feedback from our smart home client, smart mirrors serve as core interaction terminals for future spaces, and the primary technical challenge lies in the outermost layer of semi-transparent and semi-reflective optically coated glass. This cover lens must deliver a high-quality mirror reflection when the display is turned off, while clearly projecting the underlying UI graphics through the central transparent area when the LCD screen lights up. Traditional split-frame assembly faces critical issues with this composite optical medium; the air gap between the two glass layers causes secondary light refraction under spotlights, creating visible ghosting and reflections at the screen edges that degrade the visual experience. To control costs and accelerate the production cycle, the client chose to ship the prototype mirror cover lens to our facility, entrusting us with targeted touch display assembly optimization using our ready-made public molds.
Key Solutions:
- 8-Inch Off-the-Shelf Public Mold Matching:

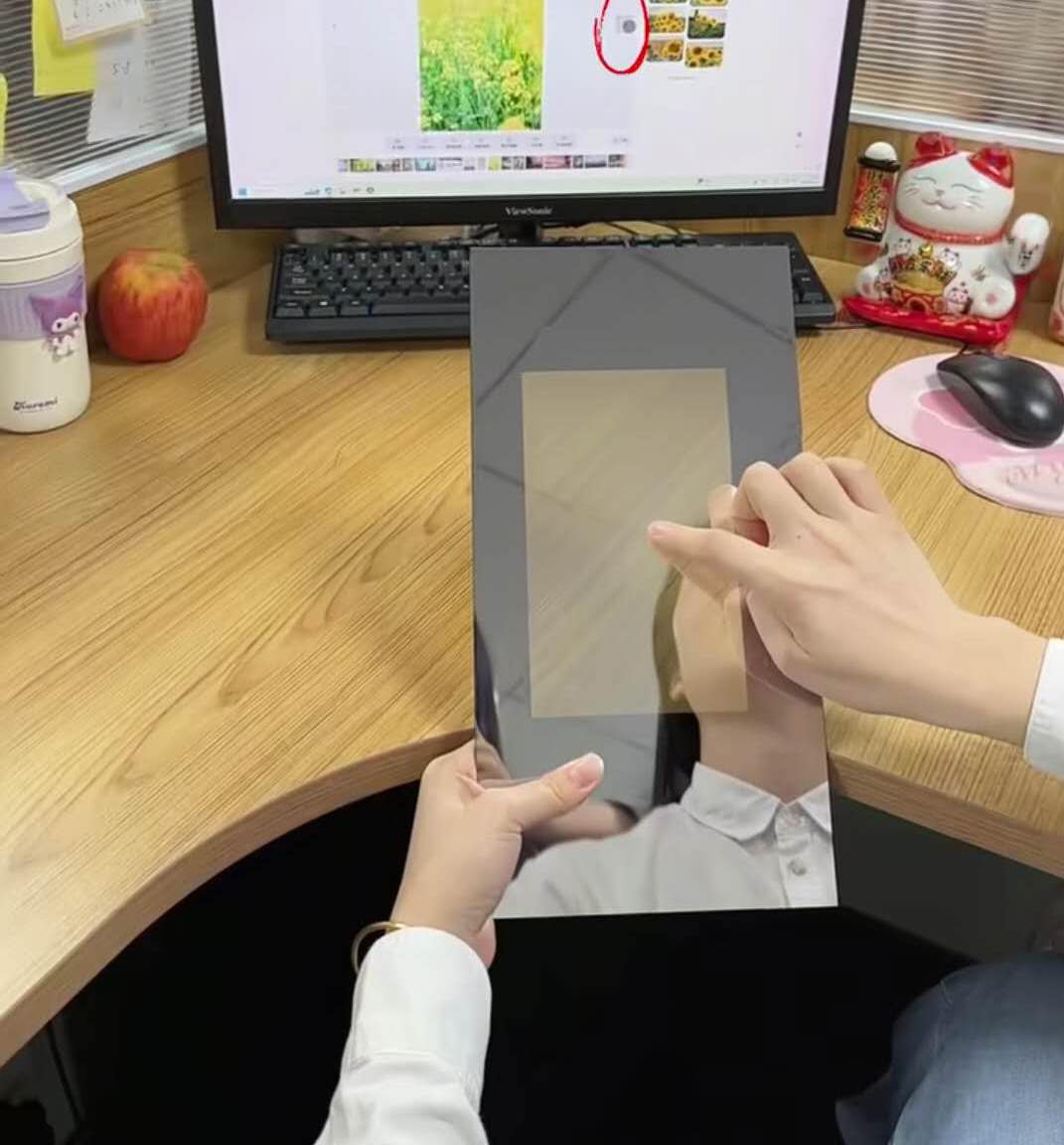

Targeting the smart mirror glass cover sent by the client, our engineering team performed precise physical measurements of its transparent viewing window. Leveraging our factory's rich database of off-the-shelf capacitive screens, we retrieved a standard 8-inch public mold screen with corresponding structural dimensions. Its active area aligned with the cover's transparent window, achieving low-cost assembly without the need for new mold tooling.
- OCA Optical Bonding Eliminates Ghosting:
To address the image ghosting pain point caused by multi-medium refraction in semi-transparent and semi-reflective glass, we implemented a solid OCA optical adhesive vacuum bonding process to assemble the rear 8-inch touch module with the underlying HD LCD screen. By completely eliminating the air gap between the two screen layers, this process minimizes the light refraction index, significantly enhancing the clarity and transparency of the display panel.
- Compact COF Cable Design:
Considering that smart mirrors must meet extremely strict standards for internal space and slim profiles during wall-mounted or embedded installation, our matched 8-inch capacitive screen utilizes a standard industrial-grade COF (Chip on FPC) integrated cable structure. By bonding the core touch IC directly onto the flexible cable, this design circumvents physical space interference and simplifies the final factory assembly process.
Overall Impact:
The optimized 8-inch smart mirror touch panel solution fully met the smart hardware client's expectations. Capitalizing on the rapid response of our standard 8-inch COF public mold inventory, we assisted the client in completing hardware and software matching within a reasonable lead time. While preserving the mirror's dual-use functionality, this solution significantly reduced the client's upfront R&D costs.
Conclusion:
This 8-inch smart mirror touch assembly solution highlights our technical service capability to conquer specialized optical medium adaptation challenges using standard, off-the-shelf public molds. From structural mapping and optical ghosting elimination to complete physical system integration and testing, we achieved full-process cooperation. In the future, we will continue to deeply cultivate mainstream sizes for commercial smart mirrors and self-service terminals—such as 8", 10.1", and 15.6"—providing steadfast and reliable integrated touch display solutions for more smart home and smart display enterprises.
