Retrofit solution using standard off-the-shelf 7" industrial resistive touchscreens to upgrade legacy non-touch terminals. Low-cost stack assembly method without changing the enclosure mold.
Case Details:
As a professional industrial-grade touchscreen manufacturer, we focus on providing clients with flexible touch upgrades and technical support for drop-in replacements. Recently, a client sent us their existing desktop control terminal enclosure along with the original 7-inch LCD screen. The equipment was originally designed for display-only functionality, with all interactions relying on physical buttons below. The client wished to add a layer of touch functionality to the screen without changing the enclosure mold. By performing precise physical tolerance calculations, our technical team directly utilized a mature 7-inch standard resistive touchscreen from our inventory for seamless stack assembly, effectively resolving the compatibility challenge of upgrading legacy equipment to digital touch interaction.
Project Background:
According to feedback from our industrial control and commercial equipment clients, a large number of classic terminal devices currently in service were not designed with touch functionality during their initial R&D phases. With the popularization of digital human-machine interfaces (HMI), relying solely on physical buttons can no longer meet the demands of efficient operation. However, re-designing the entire enclosure and changing the LCD module would involve exorbitant R&D tooling costs and supply chain restructuring risks. This client's 7-inch control terminal enclosure features multiple non-standard cutouts for buttons and sensors, leaving extremely limited tolerance space inside for the screen. To control modification costs while rapidly validating the feasibility of the touch upgrade, the client chose to ship the enclosure and original LCD screen to our facility for packaging and joint tuning.
Key Solutions:
- 7-Inch Standard Resistive Screen Matching:

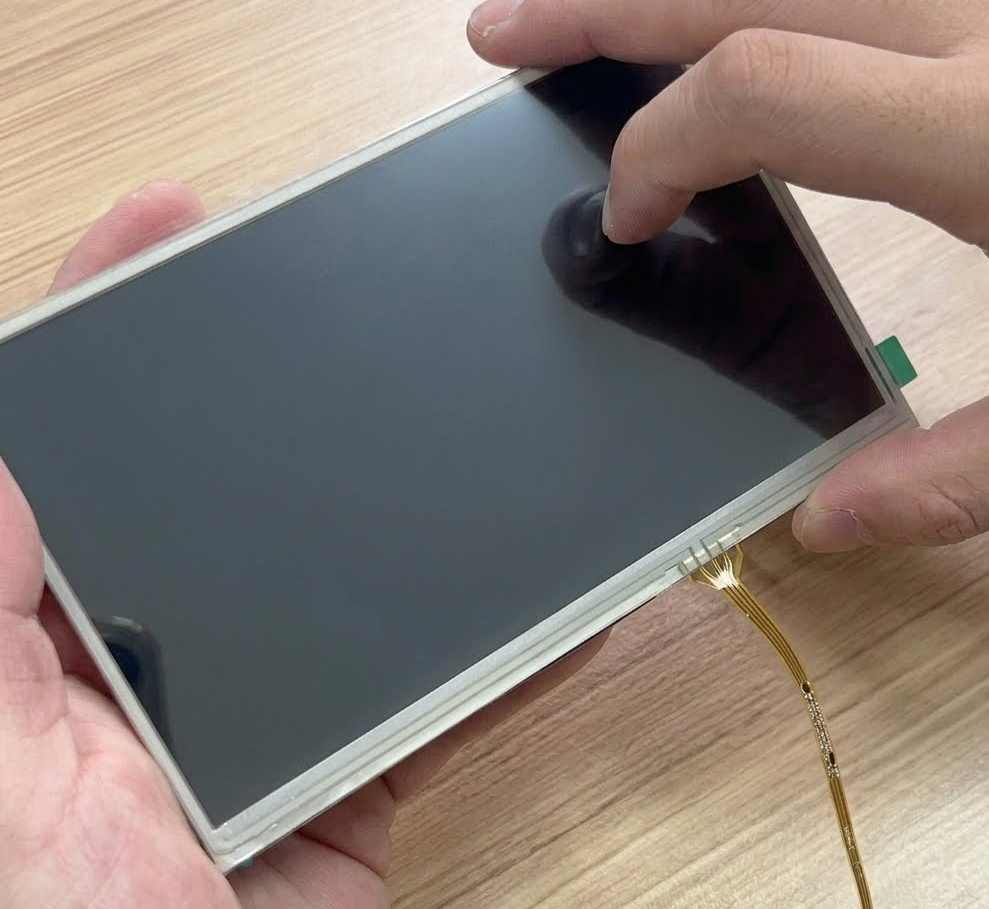

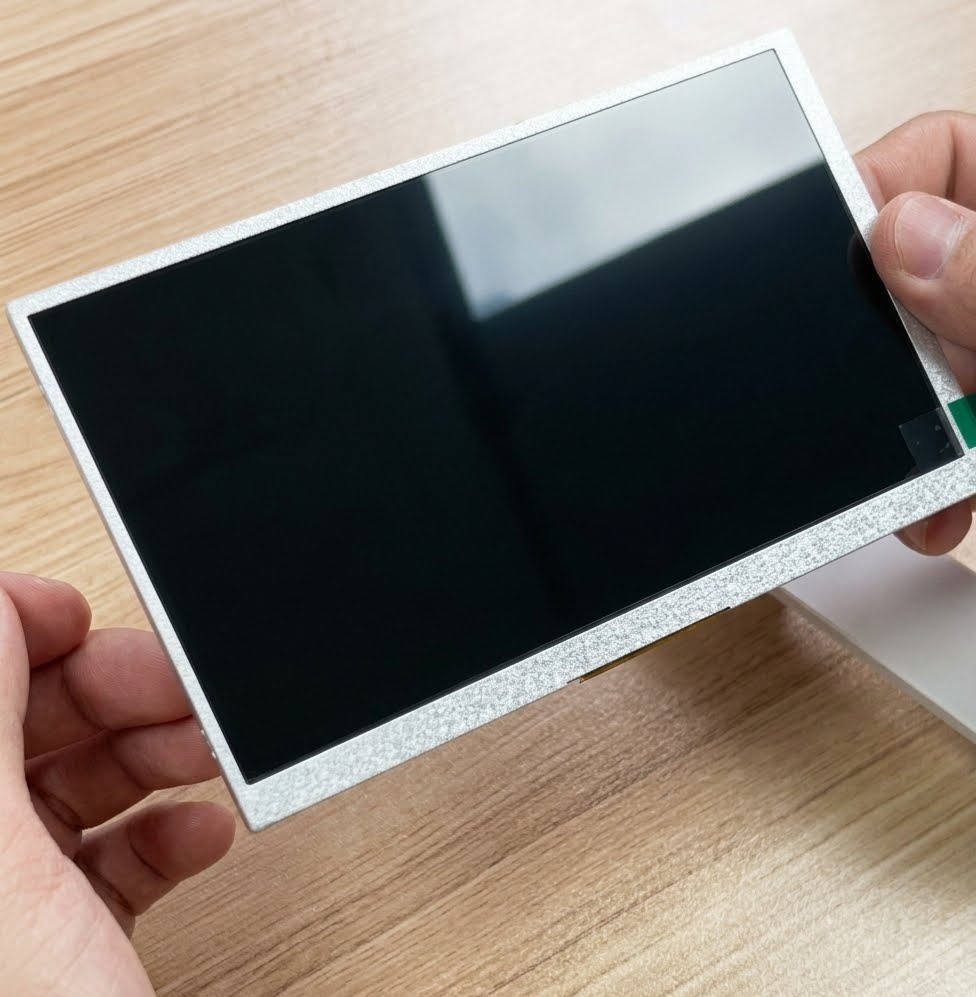

Targeting this standard 7-inch original LCD screen, our engineering team identified an industrial-grade resistive touchscreen with matching specifications from our public mold inventory. The viewing area (VA) of this touchscreen achieved a precise physical overlap with the active area of the underlying LCD screen, with edge tolerances controlled within a minimal range. Ultimately, we successfully completed the in-place retrofit inside the original casing, helping the client bypass high tooling and redesign costs.
- Ultra-Thin Damping Structure Stacking:
Because the physical nature of resistive screens requires slight pressure to achieve layer conduction, and the client's enclosure provided a very narrow thickness allowance for the screen assembly, we selected an ultra-thin hardened film design when retrofitting this 7-inch resistive screen. We also fine-tuned the thickness of the shock-absorbing foam around the perimeter. This structure guarantees that the resistive screen maintains its normal pressing elasticity while ensuring that the enclosure does not exert pressure on the screen's dead zones after closing, effectively avoiding potential localized false touches.
- Enclosure Physical Assembly and Testing:

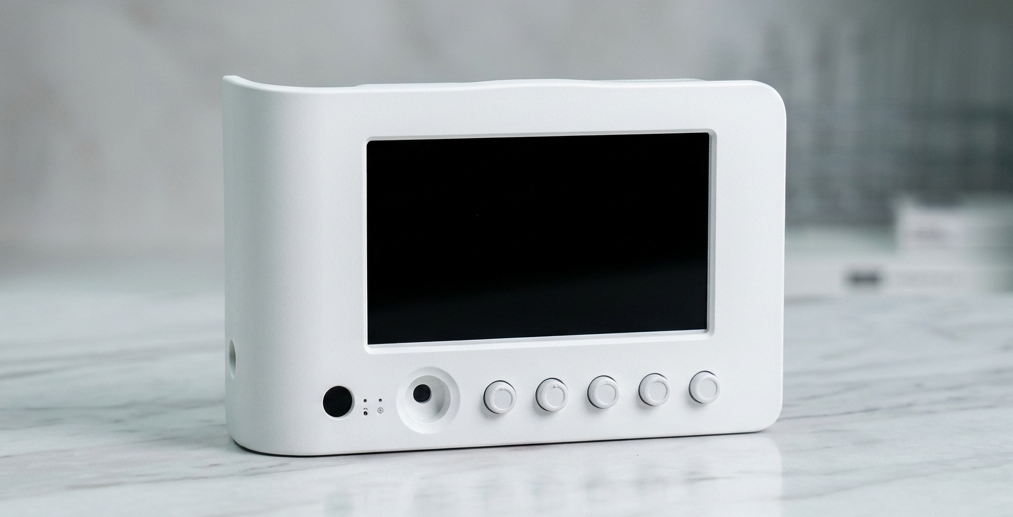

Relying on the physical machine enclosure and LCD screen sent by the client, our technicians completed a closed-loop, power-on functional joint tuning inside the factory. We embedded the assembled 7-inch resistive screen module into the white enclosure and conducted several hours of tapping and line-drawing tests. Practical assembly verification proved that touch signal transmission was normal, and the physical buttons did not interfere with the newly added touch operations, achieving the anticipated upgrade goal.
Overall Impact:
The optimized 7-inch control terminal touch retrofit solution fully met the client's expectations for low-cost upgrades. Leveraging our mature inventory of industrial resistive screens and precise physical machine stacking technology, we assisted the client in completing the interaction iteration of their legacy equipment within a reasonable lead time. While perfectly preserving the physical button functionality of the original enclosure, this solution significantly reduced the client's capital and time costs for new product development, offering a pragmatic reference path for the digital upgrade of legacy equipment.Conclusion:
This 7-inch device touchscreen retrofit solution highlights our technical support capabilities in utilizing standard industrial inventory combined with physical structural fine-tuning to meet diverse client modification needs. From structural measurement and hardware stacking to enclosure closure and joint testing, we completed a full-process, closed-loop delivery. In the future, we will continue to deeply cultivate universal industrial control and commercial display sizes, such as 7-inch and 10.1-inch product lines, providing steadfast and reliable touch selection support for more smart manufacturing and equipment upgrade enterprises.
