Custom 7" capacitive touch panel for face recognition access control. Features multi-hole glass cover silk-screening, compact COF cable, and industrial ESD protection for 24/7 reliability.
Case Details:
As a professional touchscreen manufacturer, we focus on providing touch control solutions for intelligent security and access control attendance terminals. Recently, a client sent us a face recognition access control enclosure. To address the device's complex multi-hole layout and integrated visual requirements, our technical team performed physical structural mapping and silk-screen process alignment. We developed a 1:1 custom 7-inch capacitive touchscreen panel that seamlessly integrates dual-camera cutouts and a card-swiping induction zone.Project Background:
According to feedback from our security equipment client, intelligent face recognition access control machines serve as core entry checkpoints for enterprises and industrial parks. They must operate continuously 24/7 and handle high-frequency finger tapping and fingernail scratching from employees. Because the new device integrates dual cameras, a fill light on the front panel, and a card-swiping recognition zone at the bottom, the spacing and aperture of each component require strict tolerance standards. In addition, capacitive touch panels often experience pinched cables due to tightly compressed internal enclosure space and are prone to electrostatic discharge (ESD) interference from employees in dry winter environments, causing the touch IC to crash. To ensure hardware and software compatibility, the client chose to ship the entire unit enclosure to our facility, entrusting us with the exclusive customization of the touch panel.
Key Solutions:
- Custom Cover Glass Multi-Hole Silk-Screening:

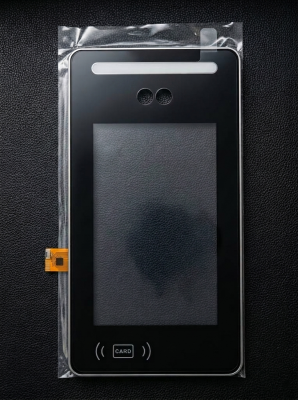

Targeting the unique front layout of this access control machine, our engineering team performed precise blueprint mapping of its enclosure. Leveraging our factory's glass cover CNC machining and multi-layer silk-screen processes, we created custom top cutouts for the dual-lens camera, a translucent zone for the elongated fill light, and specific card-swiping indicators at the bottom. This ensured the 7-inch touch panel's outer contour perfectly matched the client's enclosure slots.
- Compact Custom COF Cable:
Given that the access control machine features high internal integration—housing the motherboard, camera module, card reader module, and speaker—the internal space is extremely restricted. For this 7-inch capacitive screen, we customized a standard industrial-grade COF (Chip on FPC) structure, integrating the core touch IC directly onto the flexible cable and fine-tuning its routing direction. This not only eliminated the physical bulk of an externally mounted rigid control board but also effectively mitigated noise interference within the narrow space via a widened grounding wire design.
- Enhanced Anti-Static Design:
To address the pain point of electrostatic damage commonly faced by security access control devices, our technicians conducted hardware tuning on the 7-inch panel's touch circuitry prior to factory shipment. We deployed a standard industrial-grade ESD protection ring around the cable to boost the entire screen's resistance against electrostatic breakdown. This ensures that even when facing high-voltage static electricity during dry seasons, the touch IC maintains normal operation, effectively reducing the device's crash rate during field operations.
Overall Impact:
The optimized 7-inch touch panel solution for the face recognition access control machine fully met the client's expectations. Utilizing mature technology, we completed the exclusive customization of the prototype enclosure within a reasonable lead time. This solution not only satisfied the client's rigid requirements for a multi-hole appearance and functional silk-screening but also extended the terminal equipment's lifespan through its industrial anti-static design, providing our intelligent security client with an excellent experience that balances efficiency and reliability.Conclusion:
This 7-inch intelligent access control touch panel solution highlights our custom development and technical service capabilities in executing special cutouts, exclusive silk-screening, and industrial-grade cable protection for security terminals. From structural alignment to final machine testing, we achieved full-process closed-loop cooperation. In the future, we will continue to deeply cultivate mainstream sizes of touchscreen products, such as various smart access control systems, providing steadfast and reliable touch choices for more smart manufacturing enterprises.
