Custom 19.1" 5-wire resistive touchscreen solution for CNC machine tool control panels. Our linear calibration resolves touch drift and ensures reliable operation in harsh industrial environments.
Case Details:
As a professional touchscreen manufacturer, we focus on solving various touch failure challenges in industrial manufacturing environments. Recently, a client sent us a complete heavy-duty CNC machine tool operation control panel. Due to high-intensity, long-term use on the workshop floor, the device experienced touch inaccuracy and drift in the upper-right corner of the screen. Our technical team discovered that the original screen had suffered irreversible physical wear from prolonged pressing, a root cause that software calibration alone could not cure. Consequently, we customized a 19.1-inch industrial 5-wire resistive screen for the client, paired with professional low-level linear tuning, effectively resolving the drifting issue and restoring touch responsiveness.
Project Background:

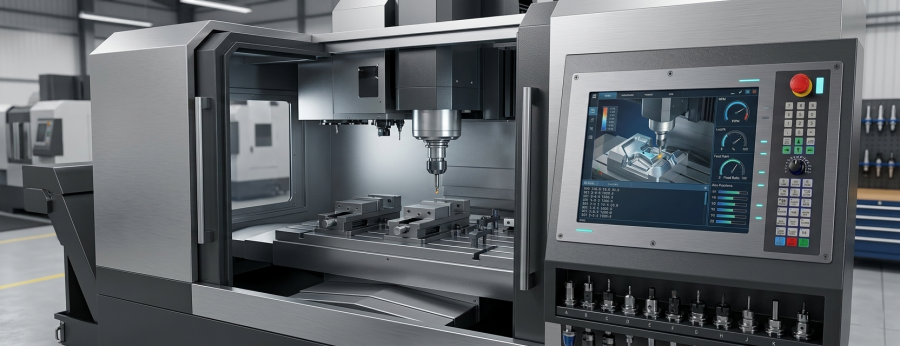

According to feedback from our industrial manufacturing client, CNC machine tools operate in harsh environments often filled with substantial metal dust and oil stains, and operators frequently need to wear thick chemical-resistant gloves. Therefore, resistive touchscreens, known for their stable performance under such conditions, are still widely used. However, traditional resistive screens feature a flexible film on the surface; long-term, high-frequency tapping causes physical wear to the internal ITO conductive layer, subtly changing its linear resistance. This hardware-level physical damage leads to localized touch drift. This client’s machine tool control panel utilized a large 19.1-inch industrial control screen. To quickly restore the production line equipment, the client chose to ship the entire unit to our facility, entrusting us with customization and technical optimization.
Key Solutions:
-
Custom 5-Wire Resistive Screen:
Targeting this large-sized 19.1-inch machine tool operation panel, our engineering team performed physical contour mapping and FPC cable routing analysis. We developed a 1:1 custom non-standard large-scale structure with precise dimensional tolerances. This ensured that the custom screen's outer metal frame and viewing area perfectly fit the original metal enclosure slots, enabling in-place assembly.
-
Upgraded 5-Wire Resistive Structure:
To address the vulnerability of the original 4-wire resistive screen, where conductive layer wear causes resistance drift, we matched the client with a more stable 19.1-inch 5-wire resistive touchscreen. The 5-wire architecture places the resistor network on the bottom glass substrate, while the outer conductive film serves only as a signal takeoff line. This design ensures that even if the outer surface is locally worn or scratched during high-intensity workshop operations, the entire screen maintains normal touch functionality, extending the machine tool's lifespan in harsh, oily environments.
-
Closed-Loop Linear Calibration:

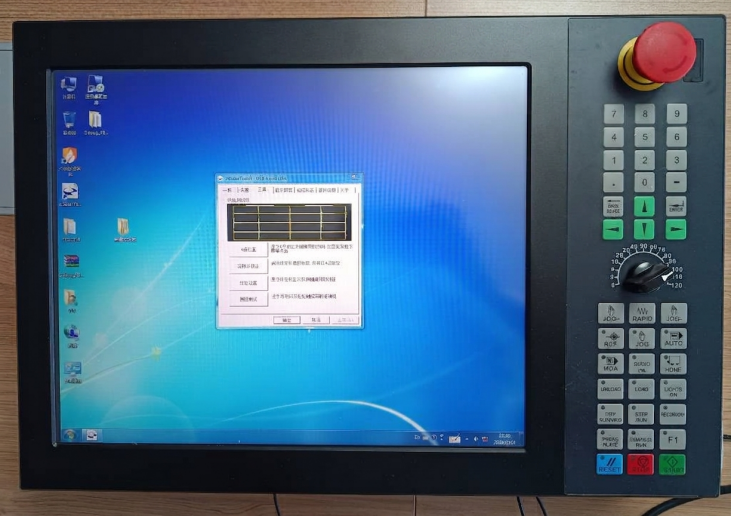

After completing the hardware replacement and interface plugging, our software engineers conducted low-level communication protocol closed-loop tuning. Prior to factory testing, technicians used a dedicated industrial calibration program to reconstruct the coordinate mapping algorithm, effectively resolving the touch issues caused by the variance in the original screen's resistance.
Overall Impact:
The optimized 19.1-inch resistive screen solution for the CNC machine tool fully met the industrial client's expectations. By leveraging our closed-loop technical service of "precise detection first, hardware customization second, and software tuning last," we resolved the drift issue of the large 19.1-inch panel within a reasonable lead time. This solution saved the client substantial costs and demonstrated our factory capability in custom development and technical support for industrial control models.
Conclusion:
This 19.1-inch CNC machine tool control panel solution highlights our technical service capability to conduct custom resistive screen development for industrial control equipment, moving beyond merely offering mature, off-the-shelf public mold products. From physical testing, structural mapping, and exclusive prototyping to full-screen accuracy testing, we completed a full-process closed-loop delivery. In the future, we will continue to deeply cultivate various touchscreen products, providing steadfast and reliable touch display solutions for more precision smart manufacturing enterprises.
