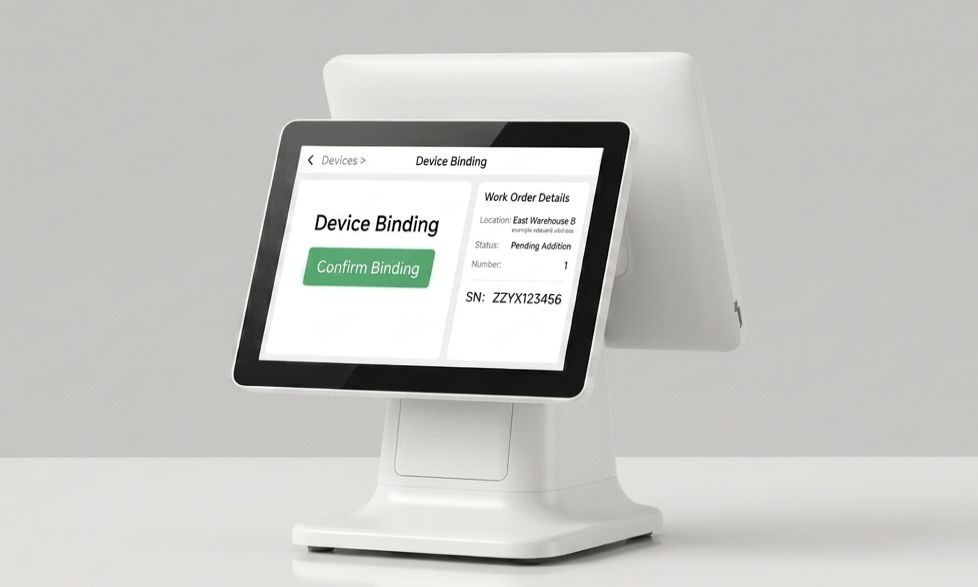

Custom 10.1" capacitive touch display assembly for smart ordering kiosks. Our optical bonding solution solves structural fit and display issues to accelerate commercial device production.
Case Details:
As a professional touchscreen manufacturer, we focus on providing clients with highly compatible LCD touch assembly customization and technical support services. Recently, we tailored a high-definition IPS LCD and capacitive touchscreen assembly for a smart POS client’s kiosk enclosure. In response to standard requirements for high brightness, internal thickness control, and touch stability, we matched the components within the R&D cycle. This solution effectively resolved issues such as dust ingress from split assembly and internal structural squeezing.
Project Background:

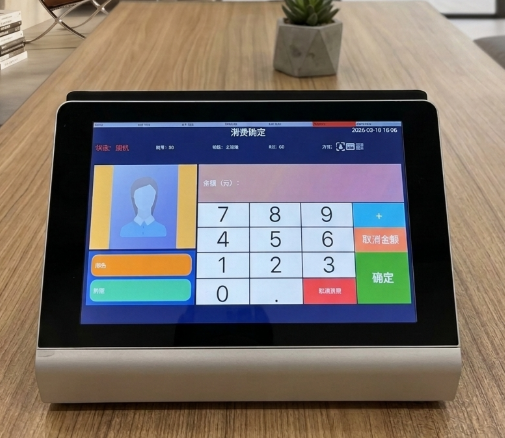

According to feedback from the smart ordering kiosk client, purchasing 10.1-inch LCDs and touchscreens from different suppliers often led to assembly bottlenecks. Inconsistent backlight frames, thickness tolerances, and FPC pin definitions frequently caused screen ripples due to enclosure pressure, as well as dust ingress between the two layers. To overcome these issues, the client opted for our integrated assembly solution. Our technical team evaluated the internal space of the client's kiosk enclosure, alignment-checking the thickness, dimensions, and interface cables to ensure the assembly module could be seamlessly installed into the existing shell.
Key Solutions:
- Visual Enhancement via OCA Optical Bonding:
To address screen reflection issues in dining environments, our team utilized standard vacuum optical bonding for the 10.1-inch assembly. Using high-transmittance OCA, we bonded the HD IPS LCD (1280*800 resolution, 400 nits brightness) with the capacitive touchscreen, eliminating the air gap. This process effectively reduces reflectivity, ensuring clear displays under restaurant lighting while preventing internal dust ingress common in split frame-bonding.
- Firmware Fine-Tuning for Enhanced Anti-Interference:
To guarantee stable operation within the complex electromagnetic environment inside the POS kiosk (such as switching power supplies and Wi-Fi modules), our team selected a mainstream COB (Chip on Board) structure capacitive touchscreen. Before shipment, our technical team optimized the hardware filtering and capacitance thresholds of the touch IC. This effectively suppressed noise interference in standard environments, ensuring smooth touch operations even when staff operate the screen with water or slight grease on their hands.
- Structural Modifications for Fast Assembly:
In terms of structural matching, our team fine-tuned the metal frame and FPC outlet positions of the 10.1-inch assembly to perfectly fit the client's kiosk enclosure without modifying any housing slots. The assembly integrates industry-standard LVDS display interfaces along with standard USB and I2C touch interfaces. The client only needs to plug in the cables and secure the module, which simplifies the final assembly process and accelerates rapid prototyping and low-volume production for new devices.
Overall Impact:
The optimized 10.1-inch integrated touch display assembly met the client's expectations, resolving the challenges of supplier coordination and high defect rates in finished product assembly. The assembly solution achieved industry standards in both visual display and touch stability, allowing the new product to be launched on the market according to schedule.
Conclusion:
This touch LCD assembly solution highlights our technical service capabilities in solving dual-screen compatibility, optical bonding, and structural fine-tuning for clients. We can provide not only high-efficiency standard inventory drop-in replacements but also conventional assembly modular customization based on the client's complete device enclosure. In the future, we will continue to deeply cultivate various mainstream sizes of assembly solutions, providing integrated cost and efficiency solutions for industrial control and medical equipment enterprises.
