Case Details

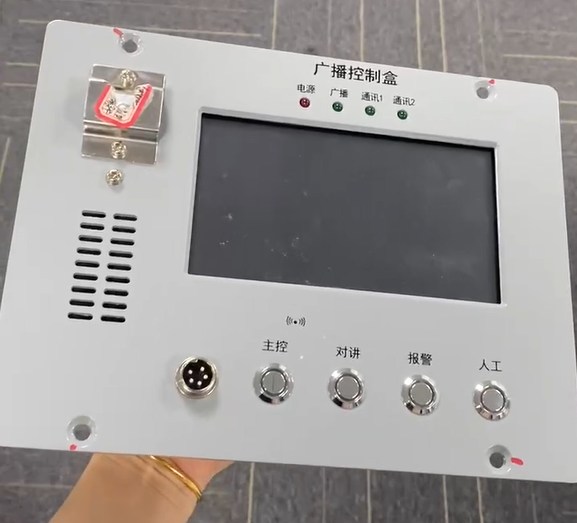

As a professional touch display manufacturer, we focus on delivering premium, high-efficiency custom and off-the-shelf solutions. Recently, addressing the upgrade requirements of an industrial broadcast control box terminal, we utilized an off-the-shelf 7-inch capacitive touch-LCD integrated assembly. By achieving precise structural, hardware, and software matching without any tooling costs, we solved common industry pain points associated with traditional 4-wire resistive touchscreens—such as vulnerable PET surfaces, low optical transmittance, short lifespans, and the need for frequent calibration. This enabled a seamless transition to a durable capacitive touch solution without altering the customer's original metal enclosure.
Project Background

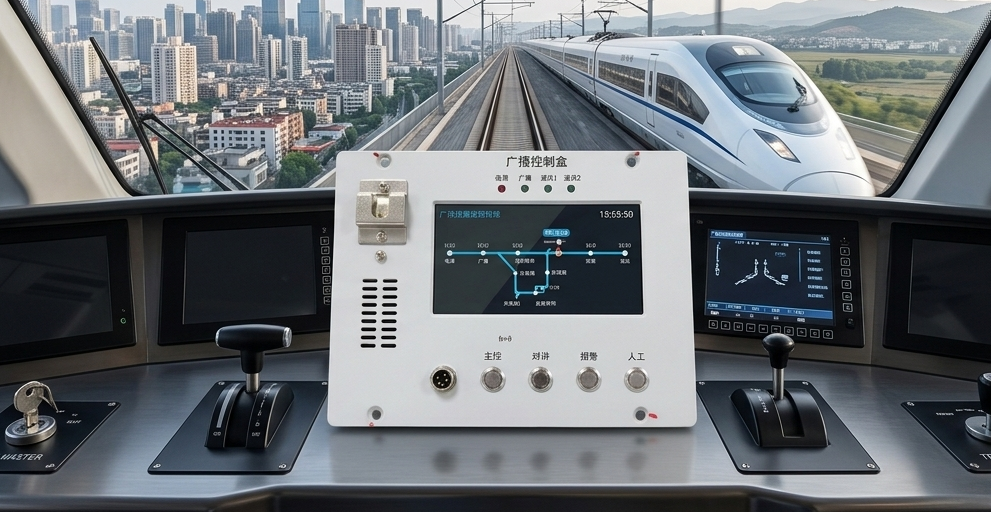

According to customer feedback, the broadcast control box serves as a critical terminal for emergency communications, widely deployed in harsh environments like subways and transit stations. The equipment originally featured a traditional 4-wire resistive touchscreen. Under high-frequency, heavy-duty operational conditions, its plastic PET outer film was highly susceptible to scratching and aging. Furthermore, resistive screens suffer from touch point drift over time, demanding periodic manual calibration that increases maintenance overhead. The customer sought to upgrade to a glass-faced, long-lifespan capacitive touchscreen, yet harbored two primary technical concerns: electromagnetic interference (EMI) from the metal enclosure and internal high-power speakers, and the strict requirement for operators wearing industrial gloves.
Key Solutions
To accommodate the tight routing tolerances inside the industrial control box, we selected an off-the-shelf 7-inch public mold assembly featuring an optimized FPC (Flexible Printed Circuit) tail exit design. The bezel thickness and active area (AA) of this capacitive touch panel assembly were engineered to fit directly into the original resistive screen slots. This achieved a seamless, drop-in mechanical replacement and saved the customer from high custom tooling and mold modification costs.
The original air-bonded resistive screen setup left a gap between layers, making it highly prone to internal fogging and dust ingress in humid station environments. We implemented an advanced vacuum full lamination (direct bonding) process using solid OCA (Optically Clear Adhesive) to bond the 7-inch HD LCD panel to the capacitive touch panel. Eliminating the air gap completely prevented condensation and dust issues while significantly boosting optical clarity, light transmittance, and mechanical shock resistance.
For the compact 7-inch form factor, we adopted a COF (Chip-on-Flex) architecture, which aligns with industrial design standards for small-to-medium displays by surface-mounting the touch controller IC directly onto the FPC. Concurrently, our engineers utilized specialized tuning software to optimize the drive current and mutual-capacitance threshold algorithms. This setup not only isolated the system from high-frequency EMI generated by the metal chassis and internal speakers but also enabled high-sensitivity touch algorithms that support seamless input with industrial insulation and latex gloves.
Overall Impact
The capacitive touch screen replacement perfectly met the customer's expectations, eliminating tooling expenses and shortening the cycle from development to mass production. By leveraging a reliable OCA lamination process and fine-tuning industrial-grade touch firmware, we completed rapid component matching and display verification without modifying the customer's mechanical chassis, eliminating the risk of frequent after-sales maintenance and future-proofing their product line.
Conclusion
This 7-inch touch-LCD assembly project highlights our capability to fulfill fast-delivery market demands using off-the-shelf inventory combined with rigorous firmware calibration. Our team completed everything from sample matching to display validation efficiently, successfully delivering the 7-inch broadcast control box touchscreen project. Moving forward, we will continue expanding our product lines for industrial replacements and look forward to partnering with more automation enterprises to achieve mutual success.
