Case Details

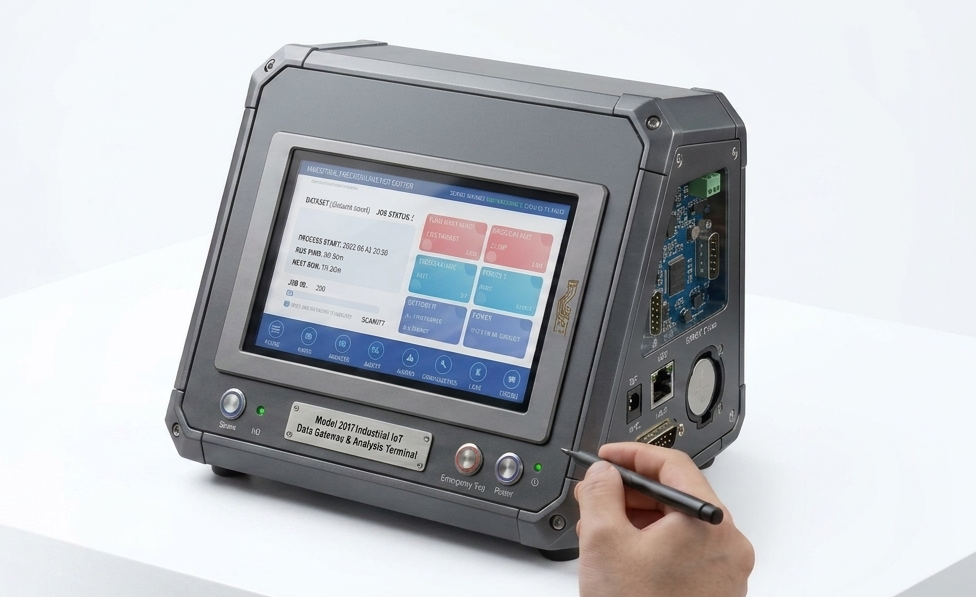

As a professional touch screen manufacturer, we focus on providing customers with premium, efficient custom and off-the-shelf (OTS) solutions. Recently, tailored to the specific requirements of rapid delivery and tight cost control for industrial analyzers, we utilized an off-the-shelf touch screen solution that eliminates tooling fees. Through precise structural matching, we successfully addressed the challenges of industrial-grade touch reliability and cost efficiency, while further optimizing the equipment's aesthetics and assembly process.
Project Background
Key Solutions
We selected the Goodix GT911 solution, an industrial-grade controller IC renowned for its exceptional cost-to-performance ratio. Although this IC is traditionally categorized as a commercial/industrial consumer-grade component, our engineering team implemented a dual optimization strategy combining physical hardware grounding/shielding with firmware algorithm tuning. This successfully suppressed noise interference and ghost touches in regular industrial environments, ensuring long-term touch stability and operational uptime for the equipment.

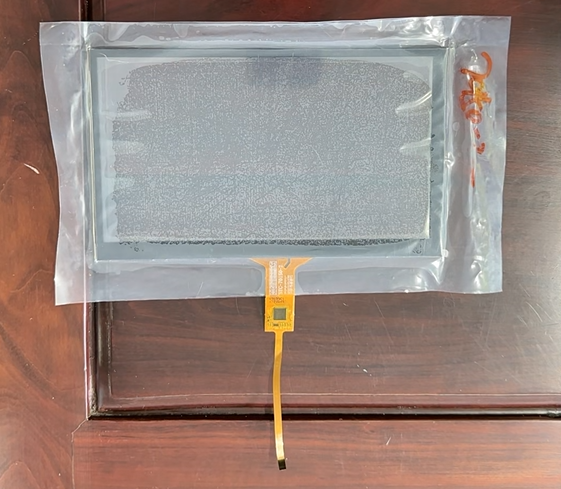

To address the routing constraints within the narrow interior of the industrial analyzer, we recommended a standard 7-inch touch screen featuring a center-aligned FPC layout. The tail position of this capacitive touch screen aligns seamlessly with the customer’s original LCD panel and internal mechanical chassis. This achieved a seamless structural drop-in replacement, saving the customer from expensive custom tooling fees.

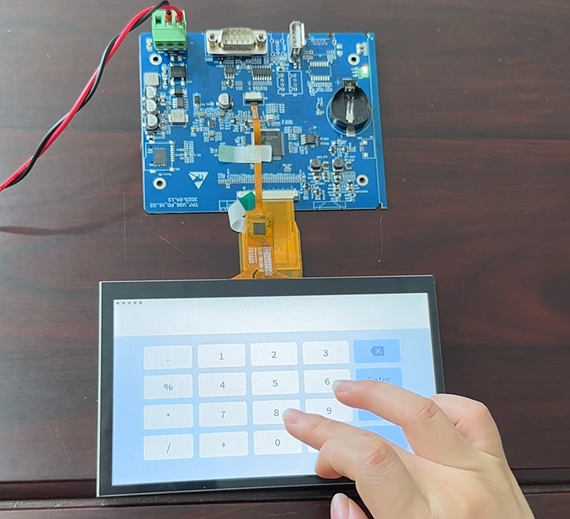

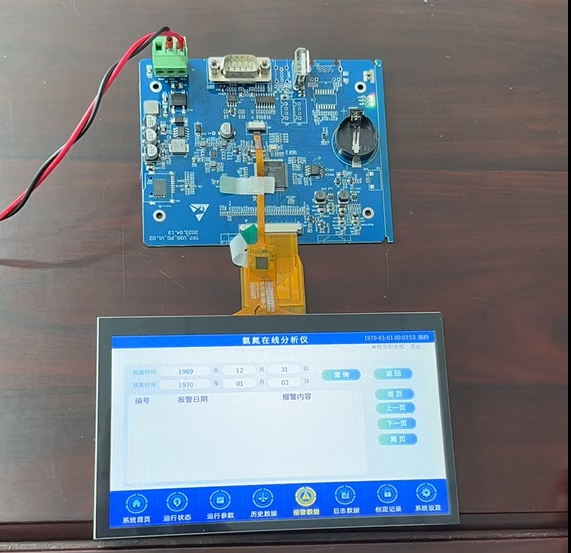

This 7-inch capacitive touch screen utilizes a standard I2C (IIC) communication interface, enabling direct hardware plug-and-play with the customer’s mainboard, while the underlying software drivers are highly standardized. Because the product dimensions and electrical interfaces are fully standardized, the customer bypassed the typical multi-week prototyping cycle. Units could be deployed immediately upon receipt for standard Tape Bonding (perimeter bonding) assembly to complete the display module integration, significantly accelerating the time-to-market (TTM) for the new project.
Overall Impact
The optimized touch screen solution exceeded customer expectations. It not only eliminated mold development costs but also shortened the project's journey from R&D to mass production by several weeks. Backed by abundant off-the-shelf inventory and a highly compatible IC architecture, we lowered the R&D risks of the new product, delivering an excellent user experience that balances cost efficiency with high performance.
Conclusion
This touch screen project demonstrates our capability to meet rapid delivery demands using standard off-the-shelf products. Our team efficiently executed the entire workflow—from sample matching to final display testing—and successfully delivered the 7-inch industrial analyzer touch screen project. Moving forward, we will continue to expand our standard product lines and look forward to partnering with more industrial automation enterprises to achieve mutually beneficial growth.
