How to Choose Touch Screens for High Temperature Environments

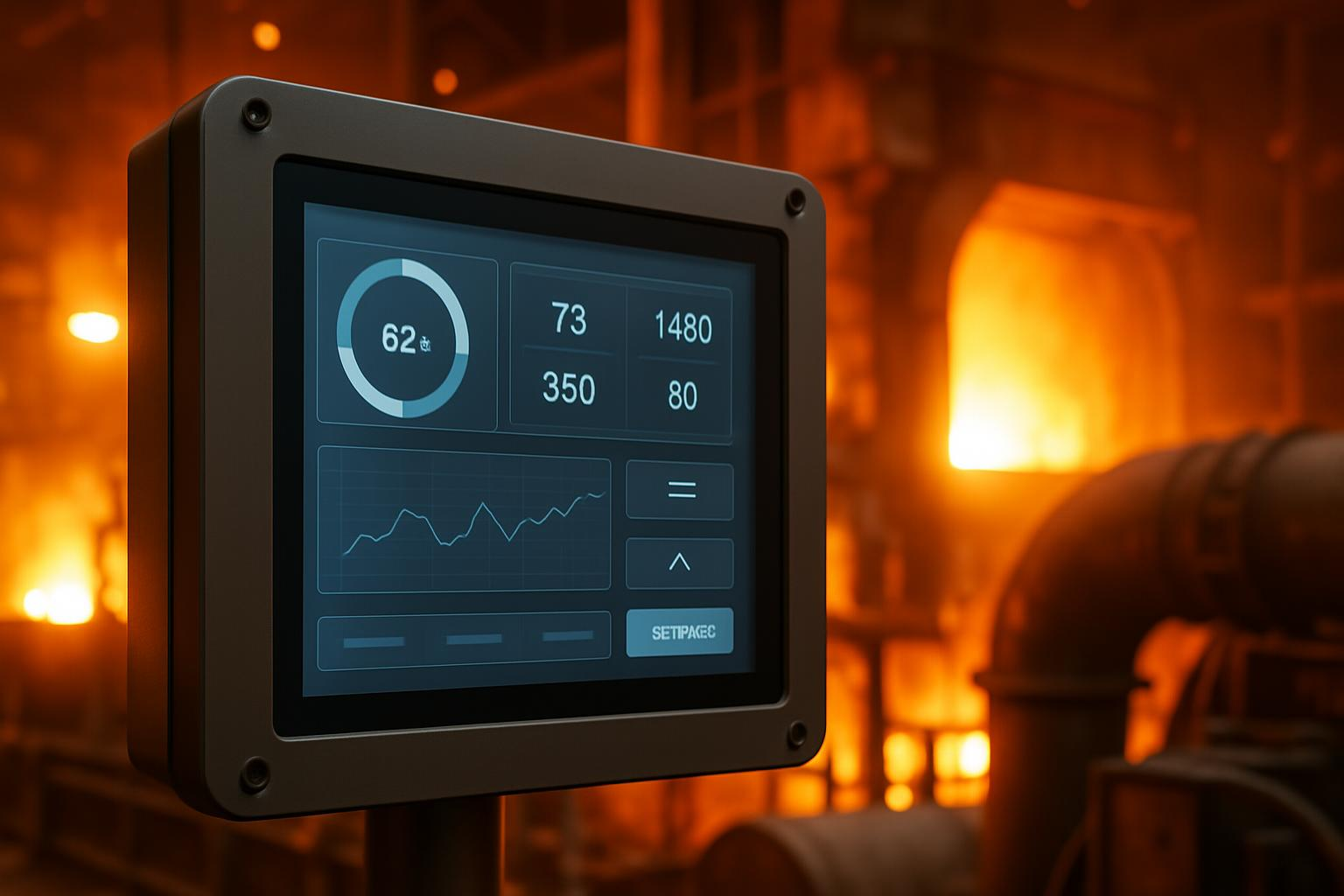

In today's industrial landscape, touch screens are increasingly deployed in challenging environments where extreme temperatures are the norm rather than the exception. From desert installations and outdoor kiosks to manufacturing floors and oil refineries, the demand for touch screens that can withstand high temperatures without compromising performance continues to grow. This article explores the critical factors to consider when selecting touch screens for high-temperature environments and introduces specialized solutions designed to thrive in these demanding conditions.

Understanding Temperature Challenges for Touch Screens

Standard commercial touch screens typically operate reliably within a temperature range of 0°C to 40°C (32°F to 104°F). However, many industrial and outdoor applications require displays that can function in environments where temperatures regularly exceed 50°C (122°F) or even reach 70°C (158°F) in extreme cases.

High temperatures can cause multiple issues for touch screen technology:

1. LCD Panel Degradation: Liquid crystal displays may experience color shifting, reduced contrast, or complete blackout at elevated temperatures.
2. Touch Sensitivity Problems: Both capacitive and resistive technologies can experience reduced accuracy or complete failure when components overheat.
3. Adhesive Failure: The optical bonding materials that hold display layers together may bubble, delaminate, or discolor. 4. Component Lifespan Reduction: Electronic components experience accelerated aging at high temperatures, significantly reducing the operational lifespan of the device.
4. Thermal Expansion Issues: Different materials expand at different rates, potentially causing stress fractures or connection failures.

Key Technologies for Heat-Resistant Touch Screens

Specialized LCD Technologies

For high-temperature environments, specialized LCD technologies offer superior performance:

- High-Temperature TFT Panels: These panels use liquid crystal formulations specifically designed to maintain stability at elevated temperatures, preventing the "black screen" effect common in standard displays.
- Transflective Displays: These displays combine transmissive and reflective technologies, reducing heat generation while improving visibility in bright sunlight conditions often associated with high-temperature environments.

Thermal Management Solutions

Effective thermal management is crucial for touch screen longevity in hot environments:

- Passive Cooling Designs: Heat sinks, thermal pads, and specialized enclosure designs that facilitate natural heat dissipation. - Active Cooling Systems: For the most extreme environments, integrated fans or even liquid cooling systems may be employed. - Heat-Reflective Coatings: Specialized optical coatings that reflect infrared radiation, reducing heat absorption from sunlight.

Robust Touch Technologies

Not all touch technologies are created equal when it comes to heat resistance:

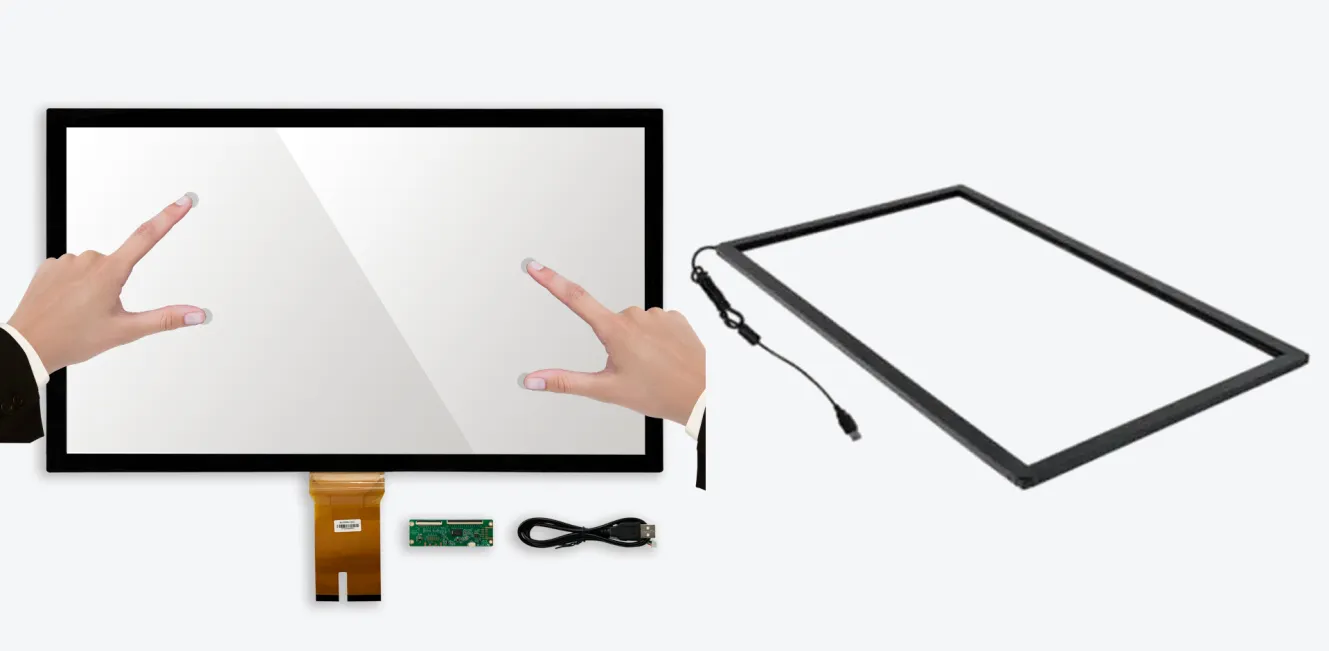

- Projected Capacitive (PCAP): Modern PCAP controllers with extended temperature ranges offer the best combination of user experience and heat resistance.
- Surface Acoustic Wave (SAW): This technology can be engineered for high-temperature environments and offers excellent optical clarity.
- Infrared Touch Frames: Since the touch detection occurs in a frame around the display, this technology can be more resilient to heat issues affecting the display surface.

STOUCH High-Temperature Touch Screen Solutions

STOUCH has developed specialized touch screen solutions specifically engineered for high-temperature environments:

HeatShield™ Series

Our flagship high-temperature solution incorporates multiple technologies:

- Operating temperature range of -20°C to 75°C (-4°F to 167°F)
- Proprietary thermal management system
- High-brightness display options (up to 1500 nits) for outdoor visibility
- Optional conformal coating for additional environmental protection
- Available in sizes from 7" to 21.5"

Desert-Grade™ Outdoor Kiosks

Designed specifically for Middle Eastern and other desert environments:

- Extended temperature range up to 80°C (176°F)
- Integrated solar shield design
- Anti-reflective and anti-glare treatments
- IP65 rating for dust and water protection
- Specialized thermal venting system

Selection Guide for High-Temperature Applications

When selecting a touch screen for high-temperature environments, consider these critical factors:

1. Maximum Operating Temperature: Determine the highest temperature the device will experience, including both ambient temperature and solar loading effects.
2. Duty Cycle: Will the device operate continuously in high heat, or only occasionally? Intermittent exposure allows for cooling periods that can extend lifespan.
3. Installation Environment: Consider whether the installation location provides any natural shade or if the device will be in direct sunlight.
4. Input Requirements: Will users be wearing gloves? This may influence the touch technology selection, as some high-temperature environments also require protective equipment.
5. Brightness Requirements: Higher brightness is often needed in hot environments that coincide with bright sunlight, but generates additional heat.
6. Power Availability: Active cooling solutions require additional power, which may be a consideration in remote installations.
7. Maintenance Access: How accessible is the installation for maintenance? More robust solutions may be warranted for difficult-to-access locations.

Case Study: Oil Refinery Control Systems

A major oil refinery in the Middle East faced challenges with touch screen failures during summer months when ambient temperatures regularly exceeded 45°C (113°F), with equipment surface temperatures reaching 60°C (140°F).

STOUCH implemented a customized solution featuring: - HeatShield™ 15" industrial touch monitors - Custom enclosures with enhanced thermal management - High-brightness displays for control room visibility - Redundant systems for critical operations

The result was a 98% reduction in heat-related failures and an estimated 5-year extension in system lifespan, demonstrating the effectiveness of properly selected high-temperature touch screen solutions.

Conclusion

Selecting the right touch screen for high-temperature environments requires careful consideration of the specific challenges posed by your application. By understanding the available technologies and implementing appropriate thermal management strategies, it's possible to deploy reliable touch interfaces even in the most demanding conditions.

STOUCH's specialized high-temperature touch screen solutions combine advanced materials, thoughtful design, and robust engineering to ensure reliable operation where standard displays would fail. Whether your application is in industrial manufacturing, desert environments, or any other high-temperature scenario, there's a heat-resistant touch screen solution that can meet your needs.

For more information about STOUCH high-temperature touch screen solutions or to discuss your specific application requirements, contact our engineering team for a consultation.
