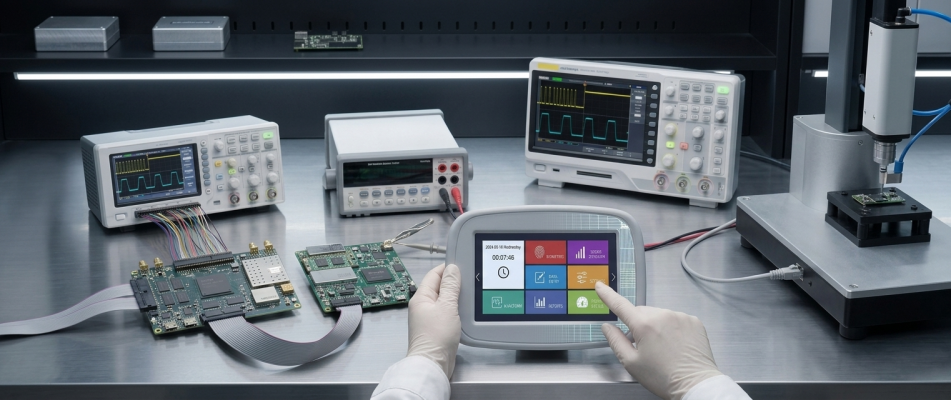

Custom embedded 7" 5-wire resistive touchscreen panel for serial HMI screens. Features a silk-screened insulating anti-bezel-pressure process to resist oil and vibration in harsh workshops.
Case Details:
Recently, a client entrusted our company with upgrading the touch panel of their Serial HMI screen terminal. Because this terminal operates in a high-vibration, oil-heavy workshop environment and utilizes an embedded plastic enclosure, the original touchscreen was highly vulnerable to structural deformation and electrical leakage failure caused by continuous mechanical resonance and bezel pressure from the enclosure. By introducing high-lifespan 5-wire pure resistive technology and adopting a silk-screened insulating anti-bezel-pressure process around the panel perimeter, our technical team successfully customized a 7-inch embedded touchscreen panel for the client, completely resolving the touch crash issues caused by enclosure squeezing and oil penetration.Project Background:According to client feedback, industrial automation machinery generates low-frequency resonance during operation, and the ambient air is heavily mixed with cutting fluids and heavy oil stains. The equipment utilizes a recessed, embedded plastic enclosure. Under the influence of long-term vibration and the thermal expansion/contraction of materials, a "bezel pressure" phenomenon frequently occurs at the enclosure edges. With original, standard touchscreen panels under this state, internal routing in the non-display areas is highly susceptible to physical deformation or insulation layer wear. Coupled with wastewater and oil seeping through enclosure gaps, this easily triggers widespread touch failures or frequent false triggers. To guarantee the clicking lifespan of the screen, the client chose to cooperate with our company for a core process customization of the touch panel.
Key Solutions:
- Recessed Embedded Structure Optimization for 7-Inch Touchscreen Panel:
Targeting the non-standard plastic enclosure of the HMI terminal, our engineering team mapped the deformation tolerances of the plastic casing. By fine-tuning the outer contour tolerances and thickness ratios of the 7-inch touchscreen panel, we optimized the clearance between the panel and the plastic enclosure, physically releasing localized surface stress concentrations caused by complete unit assembly torque.
- Silk-Screened Insulating Anti-Bezel-Pressure Process:
To prevent electrical failures caused by mechanical vibration and plastic enclosure squeezing, our company adopted a silk-screened insulating anti-bezel-pressure process on the industrial-grade touchscreen panel. By building a physical buffer and an electrical insulation layer along the edges of the touchscreen panel, the design effectively absorbs squeezing pressure from the enclosure and provides shock-absorbing cushioning protection.

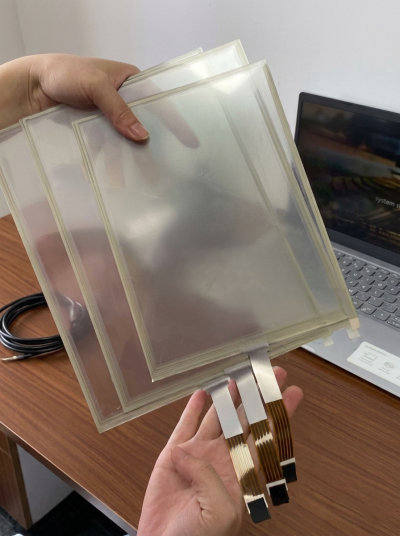

- Custom High-Lifespan 5-Wire Pure Resistive Touch Panel:
To align with the electrical characteristics of the Serial HMI development board and conquer the interaction challenges of workshop workers with heavy oil stains or sliding tools on their fingertips, we customized a high-lifespan, industrial-grade 5-wire pure resistive touchscreen panel. By integrating the resistor network directly onto the substrate glass, this design breaks free from the inherent vulnerabilities of traditional 4-wire resistive screens, where top film deformation degrades linearity.
Overall Impact:
The optimized embedded 7-inch industrial serial touchscreen panel fully met the machinery manufacturer's expectations for high reliability. Our technical team assisted the client in completing the touch technology upgrade of their HMI control terminal within a reasonable lead time. Relying on the dual protection of the "anti-bezel-pressure process" and 5-wire resistive technology, this panel significantly streamlined the client's final assembly process, fully demonstrating our factory's core capabilities in non-standard industrial control models and high-lifespan resistive touchscreen panels.
Conclusion:
The successful delivery of this 7-inch industrial serial screen (HMI) terminal touchscreen panel highlights our extensive custom development and core process breakthrough capabilities within the industrial control and automation machinery touch-matching sectors. From structural mapping and silk-screened anti-bezel-pressure process innovation to the application of the high-lifespan 5-wire resistive panel, we completed a full-process, closed-loop delivery. In the future, we will continue to deeply cultivate mainstream core sizes across our product lines for serial screens and PLC human-machine interfaces, providing highly durable, integrated touch panel selection support for smart manufacturing enterprises worldwide.
