In the realm of touch-sensitive interfaces, 4-wire resistive touch panels stand as a robust and reliable solution. These panels are widely employed in a multitude of devices, ranging from industrial controls to consumer electronics. This article delves into the intricacies of 4-wire resistive touch panels, highlighting their operational principles, advantages, and the various applications where they excel.
ion

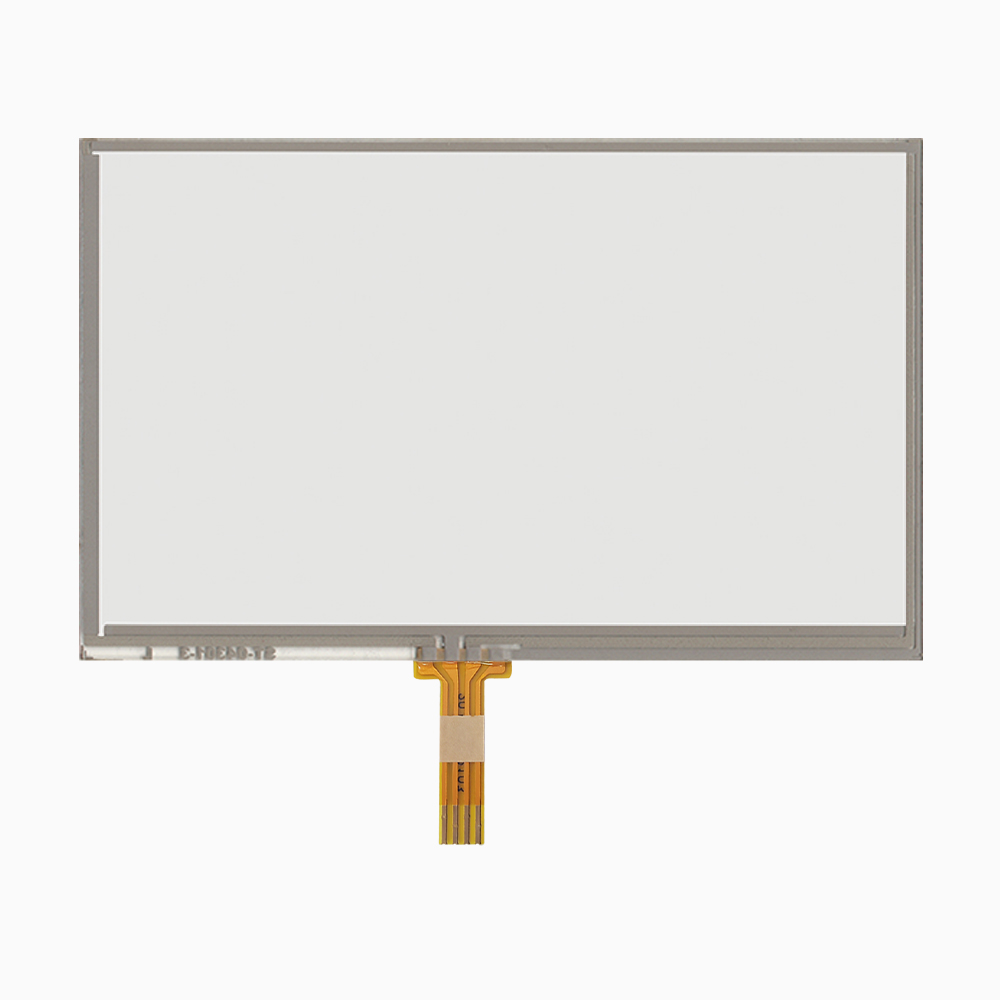

A 4-wire resistive touch panel consists of two layers separated by a thin gap. The top layer is typically a flexible, transparent conductive film, while the bottom layer comprises a rigid, glass-coated conductive material. Both layers are coated resistive material and are separated by spacers that ensure a uniform gap.
When a user touches the panel, the top layer flexes and makes contact with the bottom layer at the point of pressure. This contact completes a circuit, allowing current to flow between the two layers. The 4-wire designation arises from the use of four electrodes: two on the X-axis (typically on the bottom layer) and two on the Y-axis (usually on the top layer).
The system measures the voltage dividers created by the contact point on the X and Y axes. By applying Ohm's Law and knowing the resistance of the layers, the system calculates the precise coordinates of the touch point. This process is rapid and allows for highly accurate touch detection.
One of the most compelling advantages of 4-wire resistive touch panels is their cost-effectiveness. Compared to other touch technologies, such as capacitive or inductive panels, 4- panels are generally less expensive to produce. This makes them an ideal choice for applications where cost is a critical factor.
Resistive touch panels are known for their durability. They can withstand heavy use and are less susceptible to damage from scratches or impacts. This robustness is particularly valuable in industrial settings or environments where the panel might be exposed to harsh conditions.
Unlike capacitive panels, which require a conductive input (like a finger or stylus with a conductive tip), resistive panels can be operated with any object, including gloves, styluses, or even nails. This versatility makes them suitable for a broader range of users and applications.
4-wire resistive touch panels can be customized to fit various shapes and sizes. This flexibility allows them to be integrated into a wide array of devices, from small handheld gadgets to large industrial control panels.
In industrial settings, 4-wire panels are often used in control systems and human-machine interfaces (HMIs). Their durability, cost-effectiveness, and compatibility with gloves make them ideal for environments where workers need reliable, responsive touch interfaces.
Many consumer electronics devices, such as PDAs, calculators, and some entry-level smartphones, employ 4-wire resistive touch panels. Their lower cost and ability to function with a variety of inputs make them a practical choice for these applications.
automotive industry, 4-wire resistive touch panels are used in in-car entertainment systems, navigation systems, and climate controls. Their robustness ensures they can withstand the vibrations and temperature fluctuations common in automotive environments.
Medical devices, such as patient monitors and healthcare terminals, frequently use 4-wire resistive touch panels. Their ability to be operated with gloves or styluses is particularly beneficial in medical settings where cleanliness and sterile conditions are critical.
4-wire resistive touch panels offer a reliable, cost-effective solution for a wide range of applications. Their operational principles, based on a simple yet effective resistive technology, enable precise and responsive touch detection. Their advantages, including durability, compatibility with various inputs, and flexibility in design, make them an excellent choice for numerous industries and devices. As technology continues to evolve, 4-wire resistive touch panels will undoubtedly remain a staple in the world of touch-sensitive interfaces.
