When selecting a touch screen for your industrial, medical, or commercial application, understanding the fundamental differences between capacitive and resistive technologies is crucial. Each offers distinct advantages that can significantly impact user experience, durability, and functionality in specific environments. As a touch screen manufacturer with over 16 years of experience, STOUCH provides this comprehensive comparison to help you make an informed decision for your next project.
Figure 1: Capacitive vs. resistive touch screen technology comparison
Capacitive touch screens operate on the principle of electrical conductivity. These screens feature a glass panel coated with a transparent conductive material, typically Indium Tin Oxide (ITO). When a conductive object, such as a human finger, touches the screen, it creates a change in the electrostatic field, which the controller detects as a touch event.
The technology relies on the electrical properties of the human body to function, making it highly responsive to light touches. Modern capacitive screens can detect multiple touch points simultaneously, enabling gestures like pinching, zooming, and rotating that have become standard in consumer electronics.
Capacitive touch screens consist of transparent conductive layers without spacers between them. Instead, a specialized adhesive bonds the layers together, eliminating air gaps and improving optical clarity. This construction provides superior image quality and brightness compared to other touch technologies.
Resistive touch screens employ a fundamentally different approach. They consist of two flexible layers separated by small spacer dots. The top layer is typically made of clear plastic material (such as PET film), while the bottom layer can be either plastic or rigid glass.
Both layers are coated with a thin conductive material, usually Indium Tin Oxide. When pressure is applied to the screen, the two layers make contact, creating an electrical circuit. The touch controller measures voltage changes in both the X and Y directions to determine the exact point of contact.
This pressure-based activation means resistive screens can be operated with any object—fingers, gloved hands, styluses, or even the corner of a credit card. This versatility makes resistive technology particularly valuable in specific industrial and medical environments.
In medical environments, touch screens must meet stringent requirements for reliability, cleanability, and precision. STOUCH's medical-grade touch screens undergo rigorous EMC testing and EFT testing to ensure they perform flawlessly in critical healthcare settings.
When to choose capacitive: For high-end patient monitors and diagnostic equipment where image clarity and multi-touch functionality enhance the user interface.
When to choose resistive: For devices operated by gloved medical personnel or in environments where liquid splashes are common.
STOUCH recently developed a custom 12-inch touchscreen combining capacitive and resistive technologies for high-end patient monitors, demonstrating our ability to create hybrid solutions for specialized medical applications.
Industrial environments present unique challenges for touch screen technology, including exposure to vibration, dust, extreme temperatures, and operation by workers wearing protective gear.
When to choose capacitive: For control panels in clean industrial environments where intuitive multi-touch gestures improve operator efficiency.
When to choose resistive: For factory floors, manufacturing lines, and other rugged settings where operators wear gloves and reliability under harsh conditions is paramount.

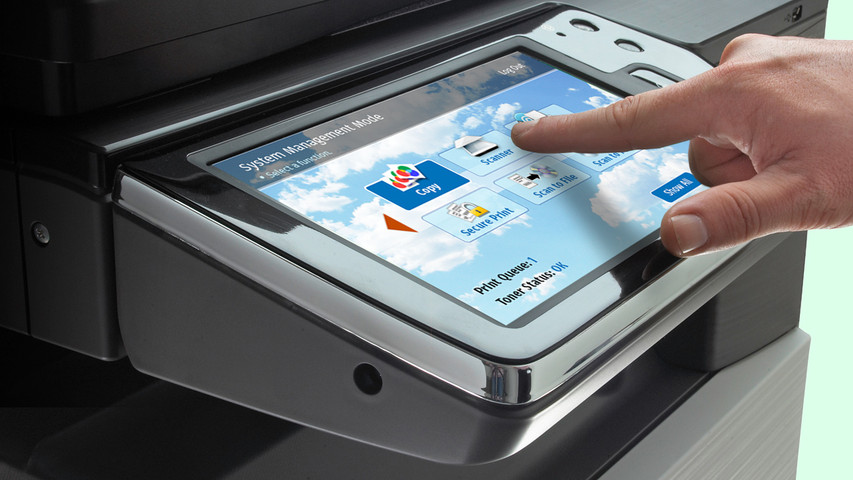

Figure 4: Industrial touch screen application scenario
Our 15.6-inch 5-wire resistive touch screens are specifically engineered for industrial applications, offering exceptional durability and reliable operation even in challenging environments.
Public-facing touch screens in retail environments need to balance durability with an engaging user experience.
When to choose capacitive: For interactive product displays and modern POS systems where intuitive navigation enhances customer engagement.
When to choose resistive: For outdoor kiosks or high-traffic areas where vandal resistance and operation under various environmental conditions are priorities.
Some applications have unique requirements that clearly favor one technology:
- Aviation displays: STOUCH's aviation-specific multimedia LCD displays feature high EMC compatibility and specialized surface treatments, typically utilizing capacitive technology for superior clarity and responsiveness.
- Elevator control panels: Our customized three-layer glass touchscreens for elevators provide enhanced stability and water resistance, usually employing resistive technology for its reliability and reduced sensitivity to accidental touches.
At STOUCH, we specialize in both capacitive and resistive touch screen technologies, offering customized solutions for diverse applications:
- Medical-grade certification: Our touch screens pass rigorous medical-level EMC and EFT testing, ensuring reliability in critical healthcare applications.
- Enhanced durability options: From standard 0.7mm cover glass to specialized 5mm reinforced glass covers for extreme environments.
- Environmental adaptations: Custom solutions for high-temperature, high-humidity, and outdoor applications.
- TP+LCD integration: Seamless integration of touch panels with LCD modules from premium manufacturers like BOE, reducing optical interfaces and improving display quality.
When selecting between capacitive and resistive touch screen technology, consider these key factors:
Both capacitive and resistive touch screen technologies have their place in modern electronic devices. Capacitive screens excel in consumer applications and environments requiring intuitive multi-touch interaction, while resistive screens remain the preferred choice for many industrial, medical, and specialized applications where reliability under challenging conditions is paramount.
STOUCH's 16 years of experience in touch screen manufacturing allows us to provide expert guidance on selecting the optimal technology for your specific application. Whether you need the crystal-clear display and multi-touch capabilities of capacitive technology or the versatile input options and environmental resilience of resistive screens, our engineering team can develop a customized solution that meets your exact requirements.
