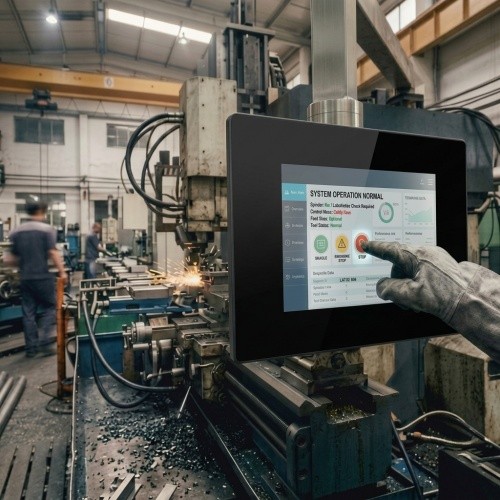

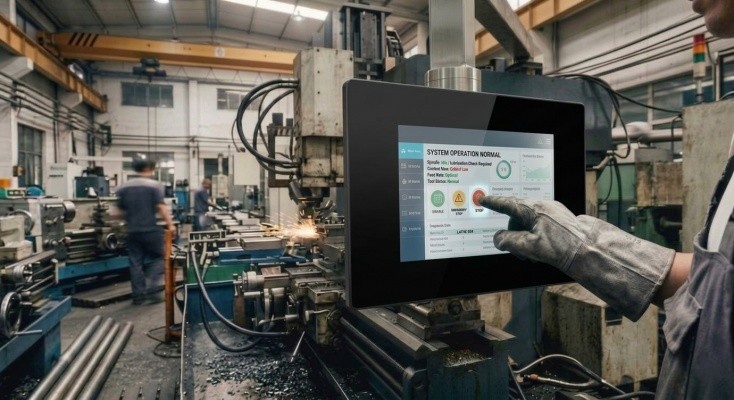

Industrial 10.1" touch LCD assembly with IK08 protection and vacuum full bonding. Supports precise multi-touch operation with industrial gloves and wet hands under heavy EMI noise.
Case Details:Recently, a client in the industrial automation equipment sector entrusted our company with the technical upgrade of their control terminal screens. Because this working environment frequently faces risks of tool impacts, complex electrical noise, and interaction challenges from operators wearing gloves or having water and oil stains on their hands, our technical team tailored an integrated true-flat touch display assembly. This 10.1-inch solution was developed through high-protection structural design and deep electrical closed-loop tuning, fully upgrading the screen's resistance to physical impacts while solving touch failure issues in harsh workshop environments.Project Background:
According to client feedback, traditional industrial control panels suffer from weak resistance to external physical impacts. Furthermore, front-line workshop workers frequently need to tap screens with high frequency while wearing thick protective gloves or having water and oil stains on their hands. Due to the insufficient interference resistance and recognition capabilities of the original equipment's touch solution, issues like unresponsive touch, drift, or system crashes occurred easily. To achieve a widescreen upgrade that balances hardcore protection in heavy industrial environments with sensitive human-machine interaction, the client chose to cooperate with our company for exclusive customization.
Key Solutions: - 10.1-inch High-Hardness True-Flat Structure Customization:
To meet the seamless assembly requirements of automation control boxes, we adopted an integrated true-flat cover lens design. The panel surface utilizes specialized tempered glass that has passed the IK08 physical impact protection test. This structure resists unexpected tool impacts and long-term industrial-grade high-frequency taps in workshops, effectively eliminating the risks of cracking and scratching found in traditional screens while offering high wear resistance and easy cleaning. - Widescreen Full-Viewing-Angle IPS & AG Anti-Glare Process:
To significantly improve the operator's visual experience, the solution utilizes an industrial-grade, full-viewing-angle IPS high-definition widescreen, which can accommodate more complex production charts, trend lines, and monitoring data. Simultaneously, we applied vacuum OCA full-bonding technology to eliminate the internal air layer and added an AG (Anti-Glare) coating process to the surface of the cover lens. This process not only eliminates ambient reflected light but also ensures that the display remains sharp and clear even when operators view the screen from different side angles. - Industrial-Grade Glove and Wet-Hand Touch Tuning:
To counter the intense electromagnetic radiation generated during the operation of high-power industrial equipment, we selected an industrial-grade independent control board solution and added dual-layer shielding circuits inside the assembly. Building upon this, our engineers optimized the signal-to-noise ratio by tuning the driver layer and sensitivity algorithms of the touch IC. As a result, while facing high-power ripple interference, the terminal still supports precise multi-point touch feedback when operators wear various industrial protective gloves or when the panel is covered with water and oil stains.
Overall Impact:
The optimized 10.1-inch assembly solution for industrial automation control terminals fully met the client's expectations for high reliability on heavy industrial sites. Our technical team assisted the client in completing the technical upgrade of their control panels within a reasonable lead time. This solution enhanced the durability and noise resistance of the control terminals in harsh industrial environments, fully demonstrating our factory's core capabilities in the modular customization of non-standard industrial control assemblies.
Conclusion:
The successful delivery of this 10.1-inch automation control terminal display assembly solution highlights our deep expertise in integrated hardware-software customization and closed-loop tuning within the smart manufacturing and industrial CNC equipment sectors. From IK08 hardcore structural protection to the AG anti-glare process, we completed a high-standard delivery across the entire workflow. In the future, we will continue to deeply cultivate mainstream industrial control sizes for various control screens, providing impact-resistant, stable, and reliable integrated touch display support for more smart manufacturing enterprises.
